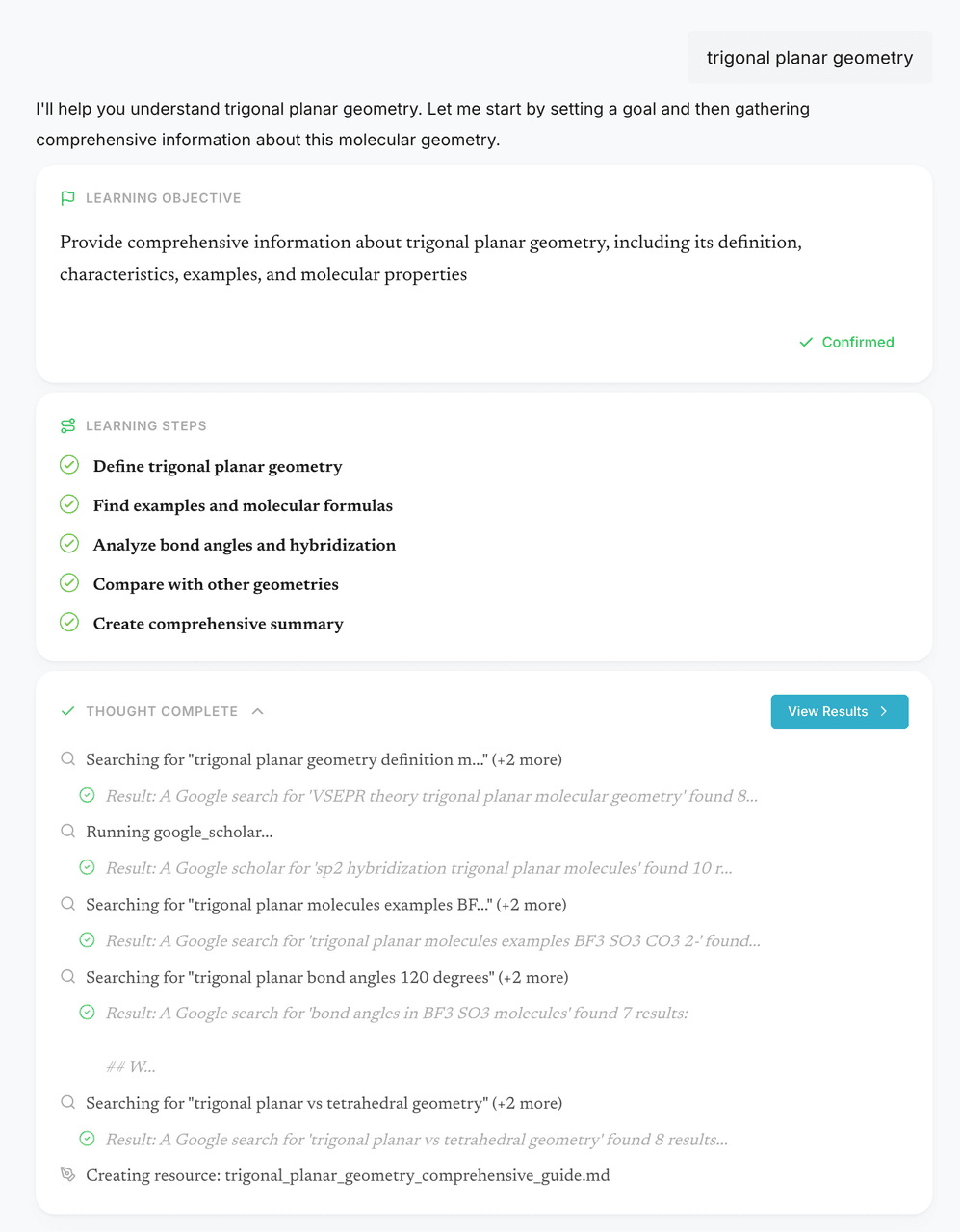

Generated using Prismer AI deep research
Definition and Basic Characteristics
Trigonal planar geometry is a molecular geometry where a central atom is bonded to three other atoms arranged in a flat, triangular arrangement. This geometry is characterized by:
- Flat, two-dimensional structure: All atoms lie in the same plane
- Symmetrical arrangement: The three bonded atoms are positioned at equal angles from each other
- No lone pairs on central atom: The central atom has exactly three bonding pairs and zero lone pairs
This geometry is one of the fundamental molecular shapes predicted by VSEPR (Valence Shell Electron Pair Repulsion) theory, which states that electron pairs around a central atom will arrange themselves to minimize repulsion.
Key Geometric Parameters
Bond Angles
The defining feature of trigonal planar geometry is the 120° bond angle between all three bonded atoms. This angle represents the optimal arrangement for minimizing electron pair repulsion when three bonding domains are present.
Hybridization
Trigonal planar geometry is associated with sp² hybridization:
- One s orbital and two p orbitals combine to form three equivalent sp² hybrid orbitals
- These three hybrid orbitals are arranged in a plane at 120° angles
- One unhybridized p orbital remains perpendicular to the plane
Molecular Symmetry
Molecules with trigonal planar geometry possess D₃h point group symmetry, which includes:
- A C₃ rotation axis passing through the central atom
- Three C₂ rotation axes in the molecular plane
- A horizontal mirror plane (σh)
- Three vertical mirror planes (σv)
Common Examples
Boron Trifluoride (BF₃)
- Central boron atom bonded to three fluorine atoms
- Perfect trigonal planar geometry with exact 120° bond angles
- sp² hybridization at boron
- Nonpolar molecule due to symmetrical geometry
Sulfur Trioxide (SO₃)
- Central sulfur atom double-bonded to three oxygen atoms
- Trigonal planar arrangement around sulfur
- Bond angles very close to 120°
- Important in acid rain chemistry and industrial processes
Carbonate Ion (CO₃²⁻)
- Central carbon atom bonded to three oxygen atoms
- Resonance structures distribute the negative charge
- Perfect trigonal planar geometry
- All C-O bond lengths are equivalent
Other Notable Examples
- Nitrate Ion (NO₃⁻): Central nitrogen atom bonded to three oxygen atoms with resonance stabilization
- Ethylene (C₂H₄): Each carbon atom exhibits trigonal planar geometry around the double bond
- Graphite: Individual layers consist of sp² hybridized carbon atoms in extended 2D networks
Comparison with Other Geometries
Trigonal Planar vs. Tetrahedral
| Property | Trigonal Planar | Tetrahedral |
|---|---|---|
| Bond angles | 120° | 109.5° |
| Hybridization | sp² | sp³ |
| Number of bonds | 3 | 4 |
| Dimensionality | 2D (planar) | 3D |
| Example | BF₃ | CH₄ |
Trigonal Planar vs. Trigonal Pyramidal
| Property | Trigonal Planar | Trigonal Pyramidal |
|---|---|---|
| Bond angles | 120° | ~107° |
| Hybridization | sp² | sp³ |
| Lone pairs | 0 | 1 |
| Geometry | Flat | 3D pyramid |
| Example | BF₃ | NH₃ |
Electronic Structure and Bonding
Orbital Overlap
In trigonal planar molecules, the central atom forms three sigma bonds using its sp² hybrid orbitals. Each sp² orbital overlaps with an orbital from a bonded atom, creating strong directional bonds.
Multiple Bonding
The unhybridized p orbital perpendicular to the molecular plane can participate in π bonding:
- In BF₃: Some π character due to pπ-pπ back-donation from fluorine
- In SO₃: Significant π bonding through pπ-dπ interactions
- In CO₃²⁻: Delocalized π system through resonance
Physical Properties
Polarity
Most trigonal planar molecules are nonpolar due to their symmetrical geometry, even when individual bonds are polar. The vector sum of bond dipoles cancels out in the symmetrical triangular arrangement.
Chemical Reactivity
Molecules like BF₃ exhibit Lewis acidity due to:
- Incomplete octet at the central atom
- Empty p orbital available for coordination
- Planar geometry allows easy approach of Lewis bases
Applications and Importance
Industrial Applications
- BF₃: Catalyst in organic synthesis, polymerization reactions
- SO₃: Production of sulfuric acid (contact process)
- CO₃²⁻: Building block in biological systems, buffer chemistry
Materials Science
- Graphite and graphene structures
- Two-dimensional materials research
- Molecular electronics applications
Summary
Trigonal planar geometry represents one of nature's most elegant molecular arrangements, combining symmetry, stability, and functionality. Its 120° bond angles, sp² hybridization, and planar structure make it a fundamental building block in chemistry, from simple inorganic molecules to complex biological systems.
The geometry's prevalence in important molecules like BF₃, SO₃, and CO₃²⁻ demonstrates its significance in both theoretical chemistry and practical applications. Whether in the laboratory, industrial processes, or biological systems, trigonal planar molecules continue to play crucial roles in chemistry and materials science.
